Surface Finishing Options
Get your metal and plastic parts a high quality and aesthetic surface finish. Bead blasting, anodizing, powder coated, etc in as fast as 5 days.
Available surface finishes
Here is a list of standard surface finishes. For custom surface finishes such as electroplating or polishing, please contact Gben@cncchinese.com
As-machined
Our standard finish is “as machined” finish. It has a surface roughness of 3.2 μm (126 μin). All sharp edges are removed and parts are deburred. Tool marks are visible.
| Color | n/a |
| Texture | n/a |
| Price | $ |
| Material | All materials |
| Color | n/a |
| Texture | n/a |
| Price | $ |
| Material | All materials |
Bead blasting
Bead blasting is the process of powerfully propelling, generally with high pressure, a stream of blast media against a surface to remove unwanted coating layers and surface impurities.
| Color | n/a |
| Texture | Matte |
| Price | $ |
| Material | Aluminum, Steel, Stainless Steel, Brass, Copper |
| Color | n/a |
| Texture | Matte |
| Price | $ |
| Material | Aluminum, Steel, Stainless Steel, Brass, Copper |
Anodizing
Anodizing is an electrolytic passivation process that grows the natural oxide layer on aluminum parts for protection from wear and corrosion, as well as for cosmetic effects.
| Color | Clear, black, grey, red, blue, gold |
| Texture | Smooth, matte finish |
| Price | $$ |
| Material | Aluminum |
| Color | Clear, black, grey, red, blue, gold |
| Texture | Smooth, matte finish |
| Price | $$ |
| Material | Aluminum |
Electroplating
Electroplating is a process that uses an electric current to reduce metal cations in the electrolyte solution, producing a metallic coating on a metal surface. This process can be used for purposes of corrosion and wear resistance, as well as for decorative purposes.
| Color | Gold, silver, nickel, copper, brass |
| Texture | Smooth, glossy finish |
| Price | $$$ |
| Material | Aluminum, steel, stainless steel, brass |
| Color | Gold, silver, nickel, copper, brass |
| Texture | Smooth, glossy finish |
| Price | $$$ |
| Material | Aluminum, steel, stainless steel, brass |

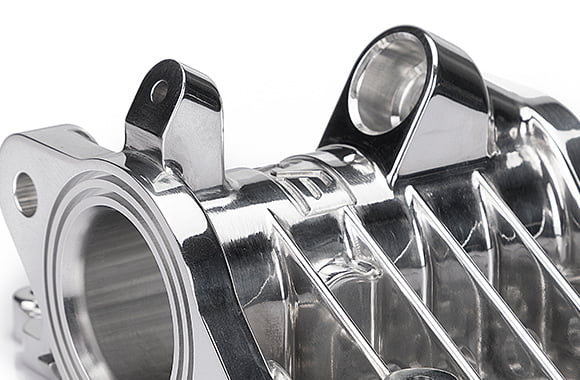

Polishing
Parts are manually polished in multiple directions. Surface is smooth and slightly reflective.
| Color | n/a |
| Texture | Smooth, glossy finish |
| Price | $$$$ |
| Material | All materials |
| Color | n/a |
| Texture | Smooth, glossy finish |
| Price | $$$$ |
| Material | All materials |
Powder coating
Powder coating is a dry coating process used to apply free-flowing, dry color powder to a metal substrate. Unlike normal wet painting that contains solvent, powder coating is applied as a dry powder by electrostatic attraction, then melted and fused into an even coating with heat.
| Color | Custom |
| Texture | Glossy |
| Price | $$$ |
| Material | All metal materials |
| Color | Custom |
| Texture | Glossy |
| Price | $$$ |
| Material | All metal materials |
Brushing
Brushing is a surface treatment process in which abrasive belts are used to draw traces on the surface of a material, usually for aesthetic purposes.
| Color | n/a |
| Texture | Satin |
| Price | $$ |
| Material | ABS, Aluminum, Brass, Stainless Steel, Steel |
| Color | n/a |
| Texture | Satin |
| Price | $$ |
| Material | ABS, Aluminum, Brass, Stainless Steel, Steel |

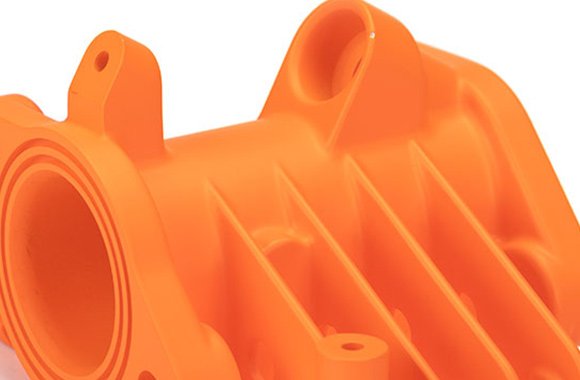

Painting
Painting involves spraying a layer of paint onto the surface of the part. Colors can be matched to a Pantone color number of the customer’s choosing, while finishes range from matte to gloss to metallic.
| Color | Custom |
| Texture | Gloss, semi-gloss, flat, metallic, textured |
| Price | $$$ |
| Material | Aluminum, Stainless Steel, Steel |
| Color | Custom |
| Texture | Gloss, semi-gloss, flat, metallic, textured |
| Price | $$$ |
| Material | Aluminum, Stainless Steel, Steel |

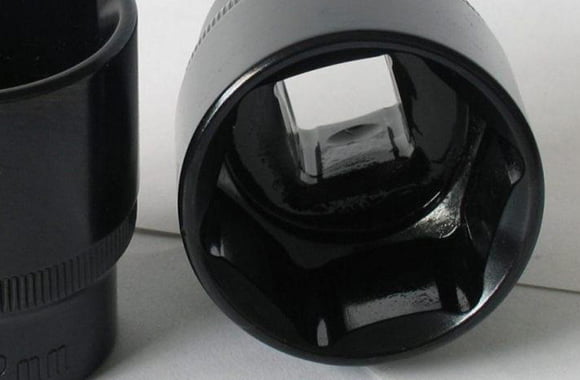

Black oxide
Black oxide is a conversion coating similar to Alodine that is used for steel and stainless steel. It is used mainly for appearance and for mild corrosion resistance.
| Color | Black |
| Texture | Smooth, matte |
| Price | $$$ |
| Material | Steel, Stainless Steel |
| Color | Black |
| Texture | Smooth, matte |
| Price | $$$ |
| Material | Steel, Stainless Steel |

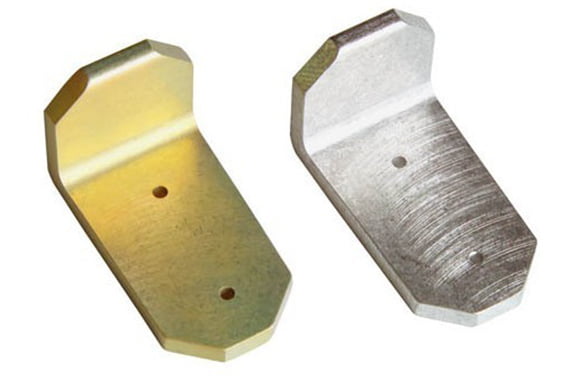

Alodine
Chromate conversion coating, more commonly known by its brand name Alodine, is a chemical coating that passivate and protects aluminum from corrosion. It is also used as a base layer before priming and painting parts.
| Color | Clear, Gold |
| Texture | Same as before |
| Price | $$$ |
| Material | Aluminum |
| Color | Clear, Gold |
| Texture | Same as before |
| Price | $$$ |
| Material | Aluminum |

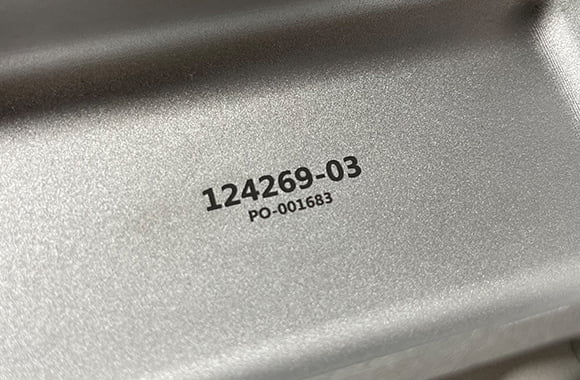

Part marking
Part marking is a cost-effective way to add logos or custom lettering to your designs and is often used for custom part tagging during full-scale production.
| Color | Custom |
| Texture | n/a |
| Price | $$ |
| Material | All materials |
| Color | Custom |
| Texture | n/a |
| Price | $$ |
| Material | All materials |
